Hardware Example 05 — GPS / GNSS

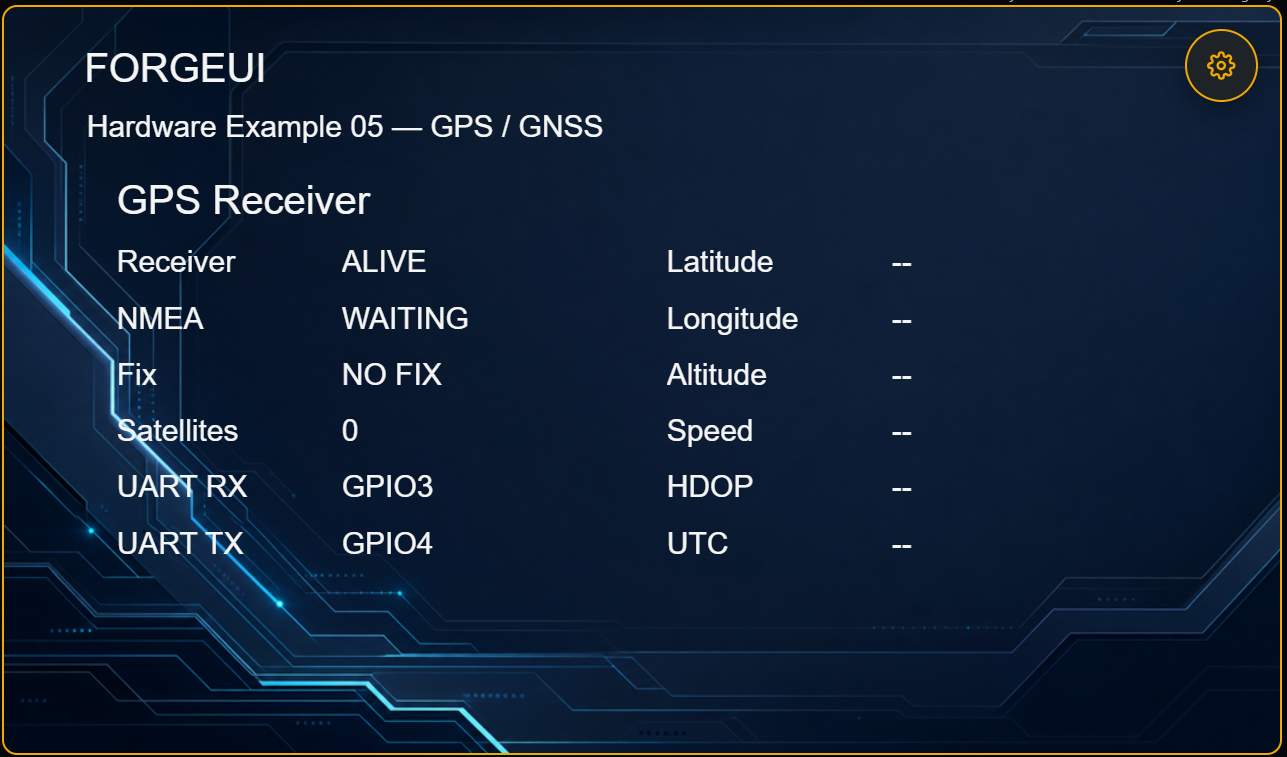

Physically proven full-duplex u-blox NEO-8 GPS/GNSS on ESP32-P4 UART1, exported from ForgeUI Studio and flashed to real hardware.
Purpose and physical proof
Proven wiring and UART
| NEO-8 signal | ESP32-P4 connection |
|---|---|
| TX | IO3 / GPIO3 → UART1 RX |
| RX | IO4 / GPIO4 ← UART1 TX |
| Serial format | UART1, 9600 baud, 8N1, no flow control |
Live NMEA and fix data
- —Checksum-valid live NMEA reception
- —2D and 3D fix handling
- —12 satellites observed during physical proof
- —Latitude and longitude
- —Altitude and speed
- —HDOP and UTC
Full-duplex UBX proof
The ESP32-P4 transmitted a UBX-MON-VER request to the NEO-8 and received a checksum-valid UBX response. This proves both directions of the UART1 link; it does not claim persistent UBX configuration.
Standalone project
