Native Component Library

Native Components are versioned, application-level Canvas components. Each is one authoring object while ForgeUI privately composes the labels, containers, charts and controls required for Browser Preview and native LVGL export.

IO Monitor, Battery Card, Tank Level Card, Network Status Card, Device Summary Card, KPI Card and Power Flow Card are monitoring-only in the current release. They do not respond to touch and generate zero UserEvents. This is intentional behavior, not a defect.

Use Relay Panel or PWM Controller for operator commands. Alarm Panel exposes only its documented alarm selection and acknowledgement interaction model.

↗

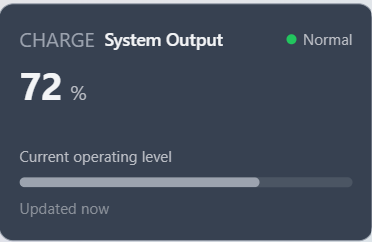

A semantic dashboard container for grouped values, status, progress and summary information.

↗

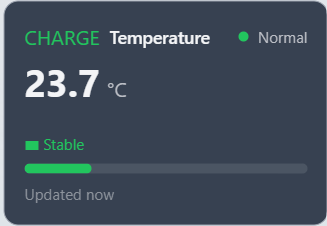

A semantic tile for one live engineering measurement.

↗

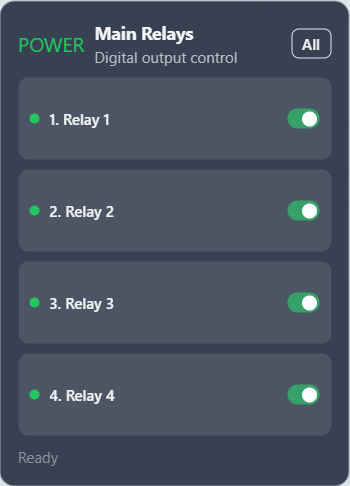

A semantic multi-channel logical relay-control interface.

↗

A semantic PWM value and enable control.

↗

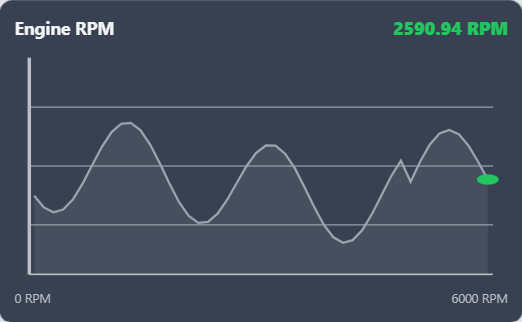

A lightweight semantic time-series history component.

↗

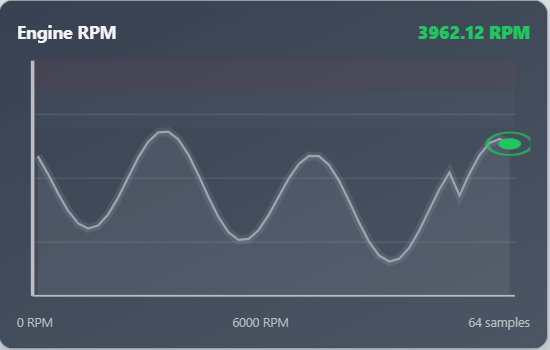

A premium bounded engineering-history card for SCADA, HMI and monitoring dashboards.

↗

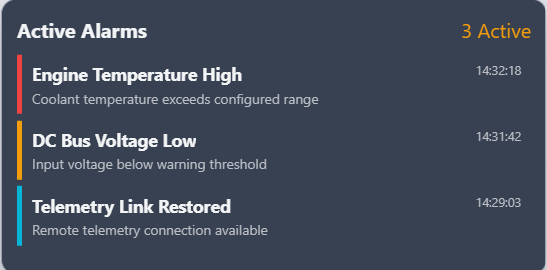

A bounded semantic alarm-management component for industrial monitoring interfaces.

↗

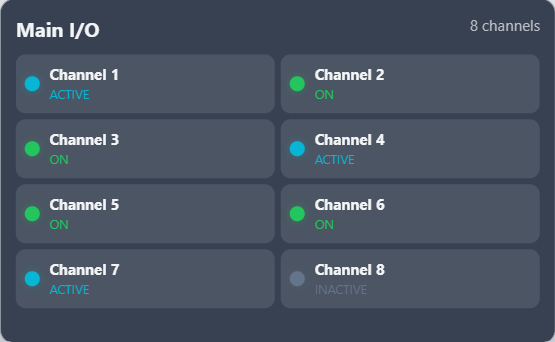

A compact, semantic, read-only diagnostics card for controller I/O.

↗

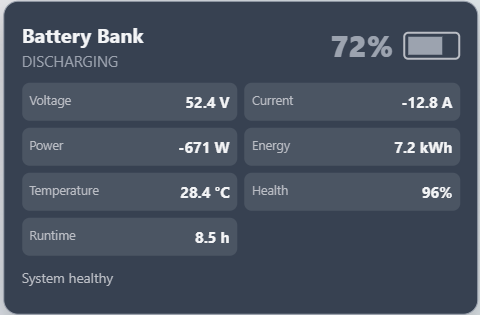

A semantic, read-only battery monitoring component.

↗

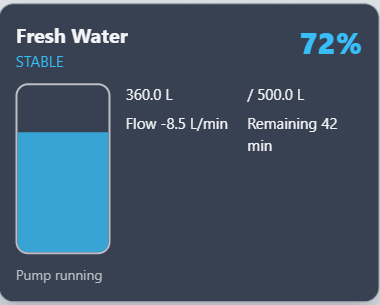

A semantic, read-only monitor for tanks, vessels, reservoirs and process storage.

↗

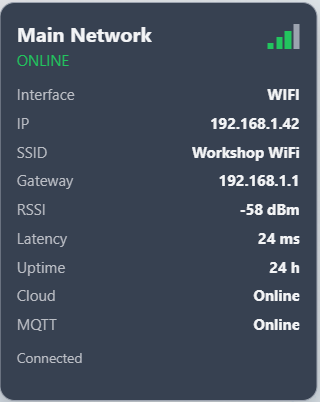

A compact, read-only projection of authoritative network runtime state.

↗

A compact, monitoring-only summary of device and subsystem health.

↗

A generic runtime-driven card for one important metric and its context.

↗

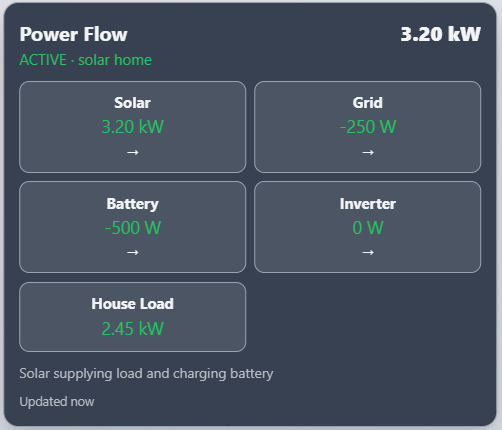

A bounded energy-flow monitor for a fixed Grid, Solar, Battery and Load topology.
